Description
Capacity (kW)
15.0, 40.0, 45.0, 70.3, 98.4, 135.2, 140.2 kW and over.
Technical Details
Download the installation manuals for your HVAC accessories here.

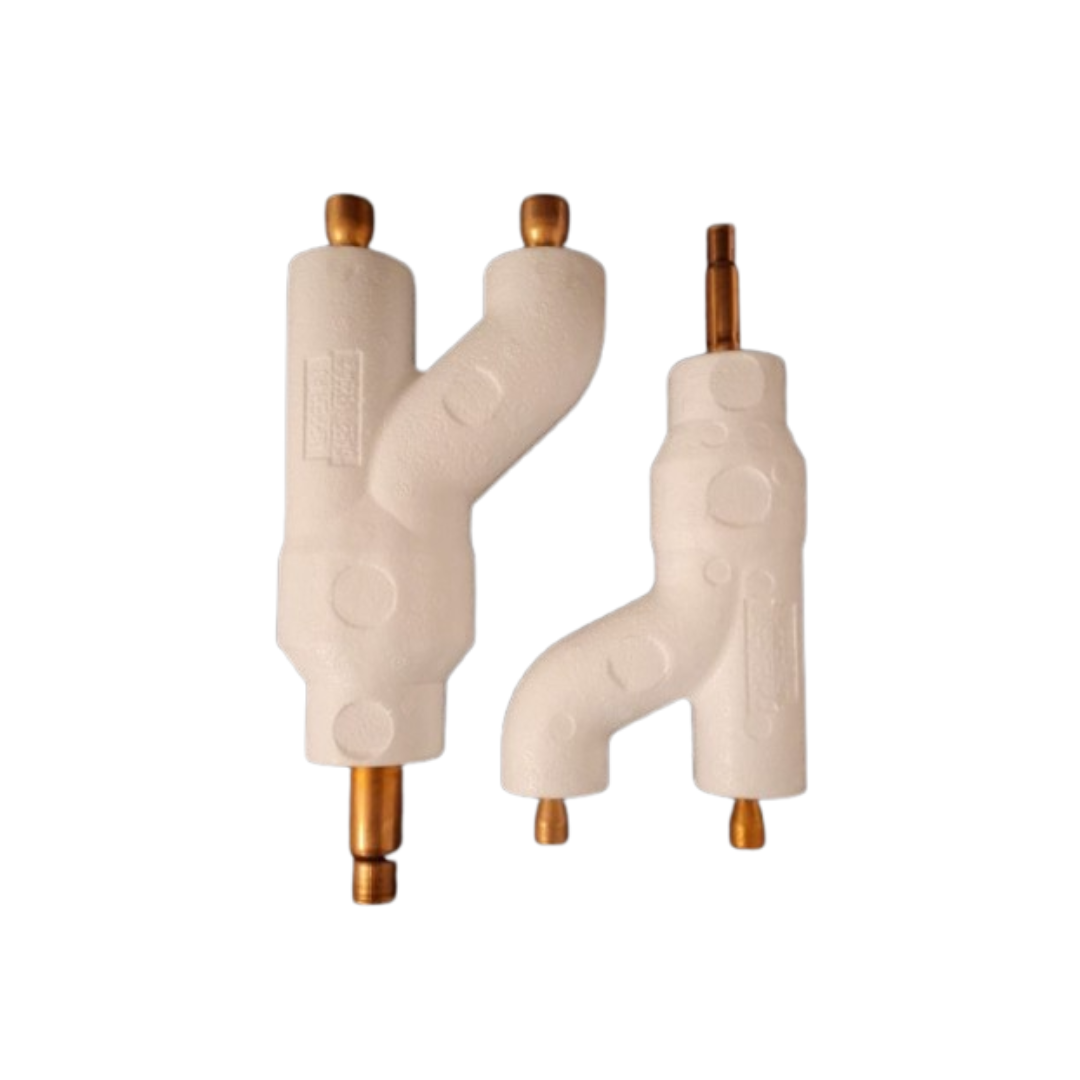

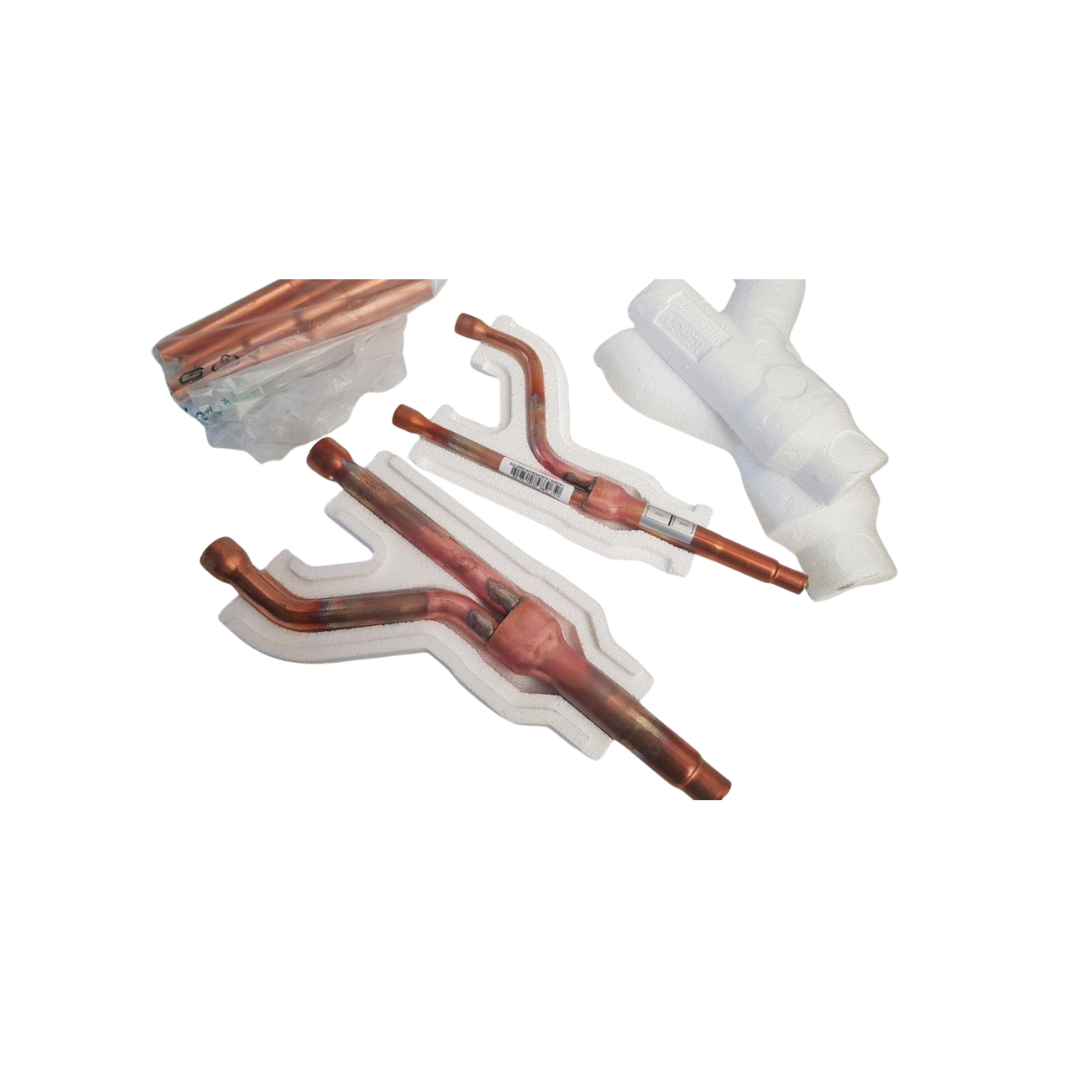

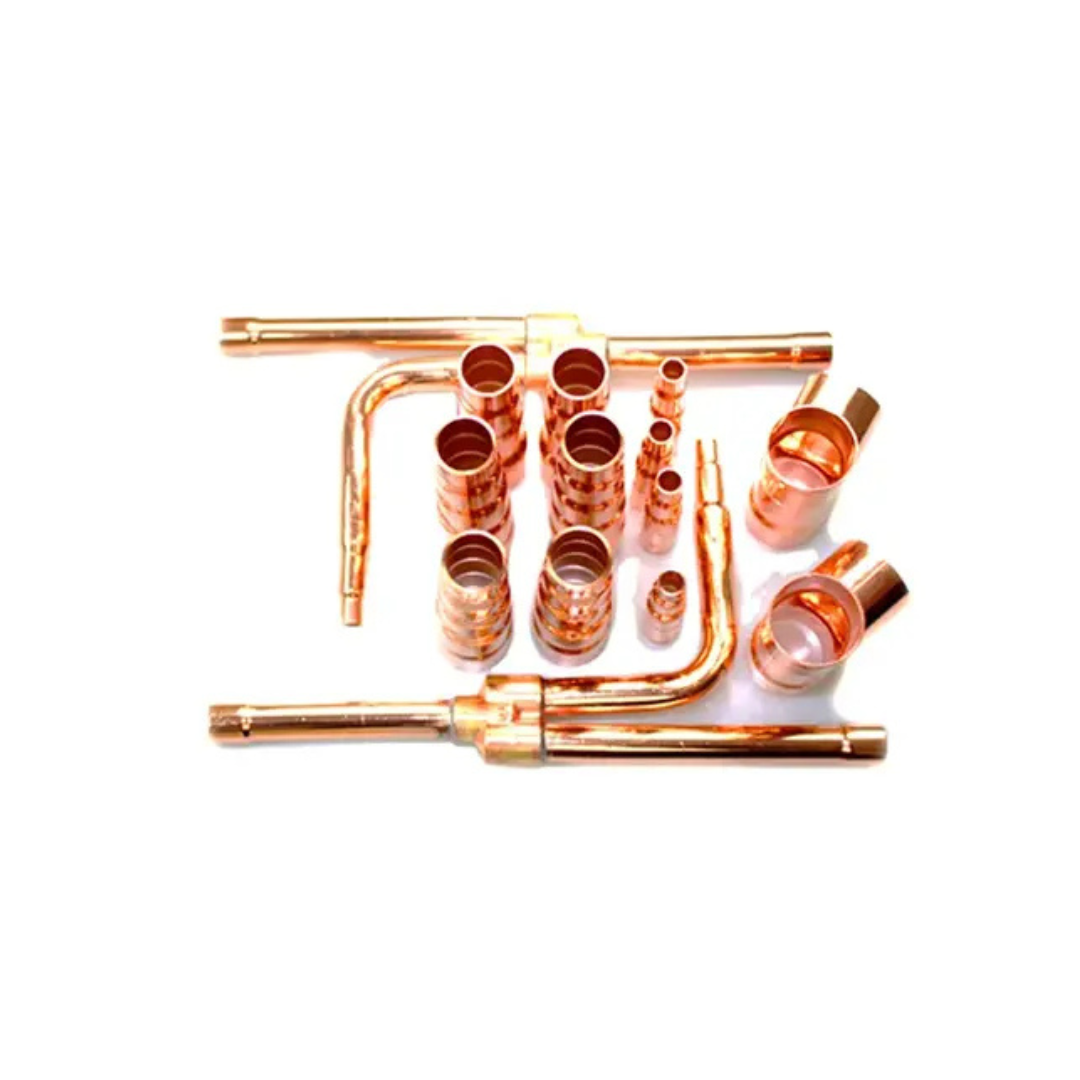

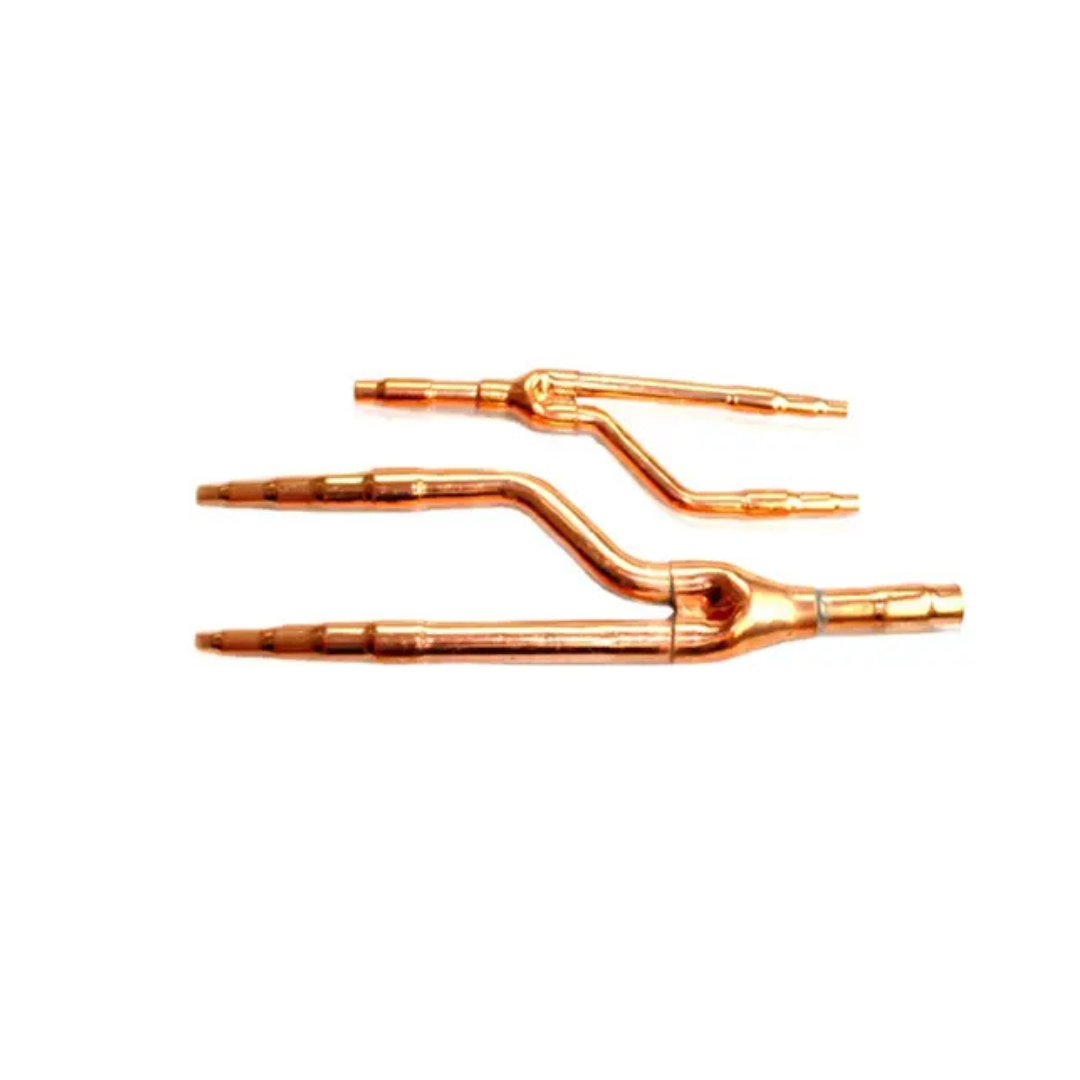

Y-Joint
Samsung Y‑Joints used in VRF HVAC systems for refrigerant distribution.
Models are clearly segmented by indoor unit capacity, allowing installers to choose the optimal joint for system balance and efficiency.
Additional information
| MXJ-YA1509M | Capacity (kW): 15.0 kW and below. |
|---|---|
| MXJ-YA2512M | Capacity (kW): Over 15.0 kW~40.0 kW and below. |
| MXJ-YA2812M | Capacity (kW): Over 40.0 kW~45.0 kW and below. |
| MXJ-YA2815M | Capacity (kW): Over 45.0 kW~70.3 kW and below. |
| MXJ-YA3419M | Capacity (kW): Over 70.3 kW~98.4 kW and below. |
| MXJ-YA4119M | Capacity (kW): Over 98.4 kW~135.2 kW and below. |
| MXJ-YA4422M | Capacity (kW): Over 135.2 kW. |
